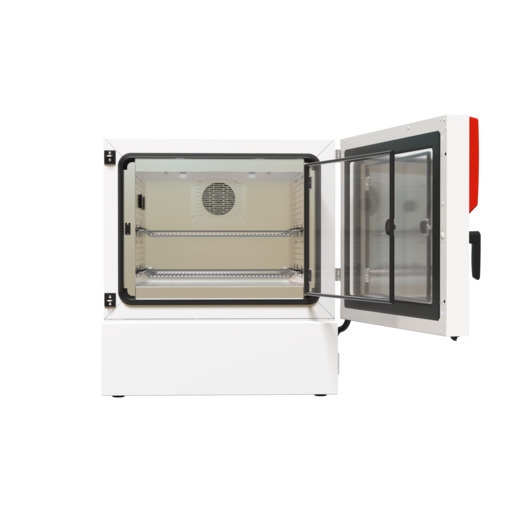

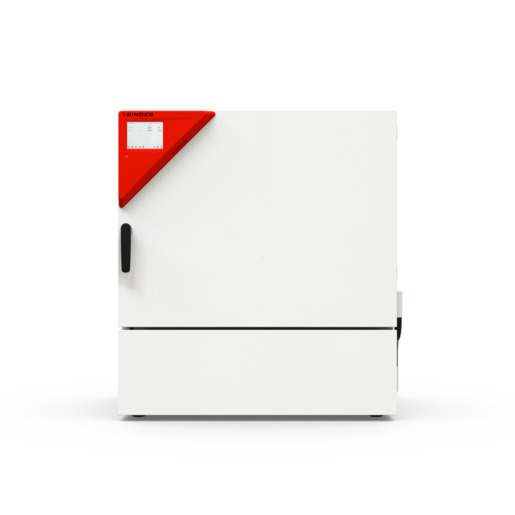

Model KBF 130 | Constant climate chambers with a large temperature / humidity range
Benefits
- A reliable option for critical ICH stability testing thanks to maximum climate homogeneity, even when the unit is fully loaded
- Reliable: failsafe operation over the long term thanks to proven compressor technology and interior made of stainless steel
- Smart: signal triangle with light-up status display and ergonomic control terminal with touchscreen program controller
- Economical: up to 40% lower energy consumption than the previous model thanks to modern inverter cooling technology
Product description
The proven specialist for reliable ICH stability tests in the pharmaceutical industry: the KBF masters all long-term tests, accelerated tests and stress tests. It fulfills all important ICH requirements, from precision to programming and documentation. With flexible water supply options for all installation locations. In addition, the new KBF consumes up to 40 % less energy than its predecessor.
Important characteristics
Temperature range:
0°C to +70°C
Humidity range:
10% to 80% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-600a refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel
- Large access port with silicone plug
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
Data interfaces:
Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Technical specifications
| Designation | KBF130-230V | KBF130UL-120V |
| Article Number | 9020-0478 | 9020-0494 |
| Option model | Standard | Standard |
| Designation | KBF130-230V | KBF130UL-120V |
| Temperature range | 0...70 °C | 0...70 °C |
| Max. heat compensation at 40°C | 270 W | 270 W |
| Designation | KBF130-230V | KBF130UL-120V |
| Temperature range with humidity | 10...70 °C | 10...70 °C |
| Humidity range | 10...80 % RH | 10...80 % RH |
| Temperature uniformity at 25°C and 60% RH | 0.2 ± K | 0.2 ± K |
| Temperature uniformity at 40°C and 75% RH | 0.2 ± K | 0.2 ± K |
| Temperature fluctuation at 25°C and 60% RH | 0.1 ± K | 0.1 ± K |
| Temperature fluctuation at 40°C and 75% RH | 0.1 ± K | 0.1 ± K |
| Humidity fluctuation at 25°C and 60% RH | 1.5 ± % RH | 1.5 ± % RH |
| Humidity fluctuation at 40°C and 75% RH | 1.5 ± % RH | 1.5 ± % RH |
| Recovery time after door was opened for 30 s at 25°C and 60% RH | 3 min | 3 min |
| Recovery time after door was opened for 30 s at 40°C and 75% RH | 3 min | 3 min |
| Designation | KBF130-230V | KBF130UL-120V |
| Rated Voltage | 200...240 V | 120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,3 kW | 1,3 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | KBF130-230V | KBF130UL-120V |
| Interior volume | 127 L | 127 L |
| Net weight of the unit (empty) | 126 kg | 126 kg |
| Load per rack | 25 kg | 25 kg |
| Permitted load | 50 kg | 50 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
| Designation | KBF130-230V | KBF130UL-120V |
| Width net | 900 mm | 900 mm |
| Height net | 1,005 mm | 1,005 mm |
| Depth net | 710 mm | 710 mm |
| Designation | KBF130-230V | KBF130UL-120V |
| Interior width | 656 mm | 656 mm |
| Interior height | 500 mm | 500 mm |
| Interior depth | 386 mm | 386 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
| Designation | KBF130-230V | KBF130UL-120V |
| Sound-pressure level at 25°C and 60% RH | 47 dB(A) | 47 dB(A) |
| Energy consumption at 25°C and 60% RH | 160 Wh/h | 190 Wh/h |
| Energy consumption at 40°C and 75% RH | 160 Wh/h | 190 Wh/h |
| Designation | KBF130-230V | KBF130UL-120V |
| Number of shelves (std./max.) | 2/6 | 2/6 |
